Creed™ Cannulated Compression Screws

Cannulated Compression Screws

A comprehensive portfolio of Ø2.5, 4.3, 5.6 and 7.4mm headed and headless self-drilling and self-tapping screws that are cannulated for uncompromised precision. The radiotranslucent properties of the Creed screws provide a significant clinical advantage over traditional metal implants by drastically improving the visualization of bones and joint spaces.

Three Unique Cutting Flutes

Precision Cutting

The three aggressive cutting flutes of the screw tip are designed to deliver maximum compression¹ with minimum torque. Superior cutting geometry delivers optimal bone chip displacement, reduces insertion force, and requires no predrilling.²

1.Data on file.
2.For Ø7.4mm screw minimized predrilling recommended.

Reverse-Cutting Design
Expedites screw extraction

Forward-Cutting Design
Accelerates screw head countersinking

Ti Core with
Anti-rotation hex provides a strong and stable construct

Torx Interface
Expedites screw extraction

Self-Drilling
Tip Design
Streamlines screw insertion

Self-Tapping
Tip Design
Streamlines screw insertion

Titanium Reverse-Cutting Feature
Facilitates removal of screw

PEEK Overmold

Titanium Core

Ring Markings

Type III Anodized Titanium

Largest Screw Cannulation

With the largest cannulation and k-wire diameter per screw size on the market, Creed screws are easily inserted using low torque. The larger k-wire, combined with “Stinger Tip” technology, results in a more precise screw insertion trajectory.

Ø Screw Size
Ø2.5mm

Ø Screw Cannulation
Ø1.4mm

Ø K-wire Size
Ø1.3mm

Ø Screw Size
Ø4.3mm

Ø Screw Cannulation
Ø2.15mm

Ø K-wire Size
Ø2.0mm

Ø Screw Size
Ø5.6mm

Ø Screw Cannulation
Ø2.9mm

Ø K-wire Size
Ø2.8mm

Ø Screw Size
Ø7.4mm

Ø Screw Cannulation
Ø3.3mm

Ø K-wire Size
Ø3.2mm

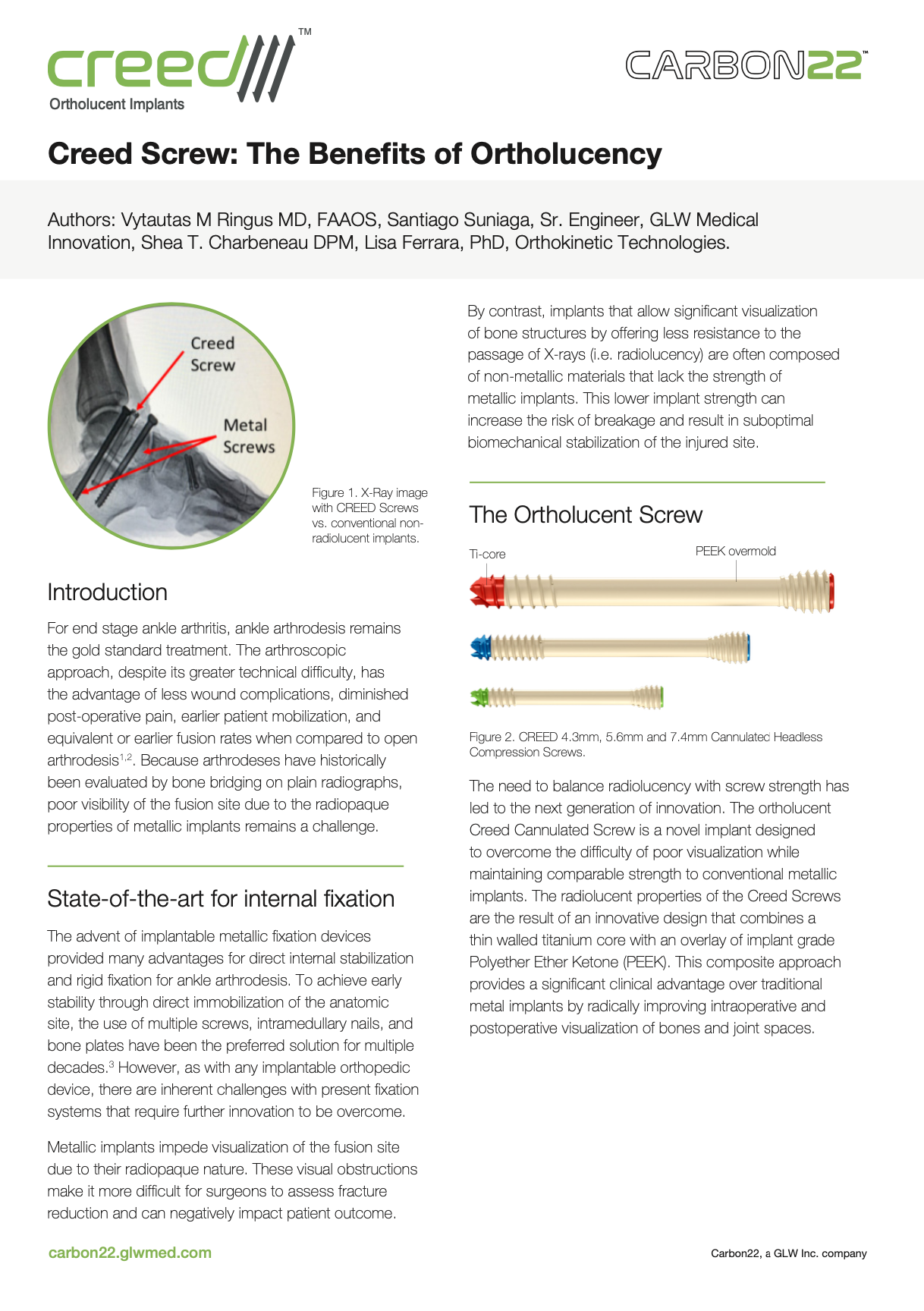

Ortholucent

The System patented³ combination of thin-walled titanium, reinforced with a PEEK overmold, provides significant clinical benefits over traditional metal implants by drastically improving the visualization of bones and joint spaces. This novel hybrid material combination provides clear bone visibility during plain radiography as well as less scatter with advanced imaging techniques.

3. Patent US11253304B2.

Versatile Cannulated Implant System

Full range of headed and headless compression screws diameters available in 2.5, 4.3, 5.6 and 7.4mm. They are self-drilling and self-tapping, allowing surgeons to control compression during fixation procedures. 

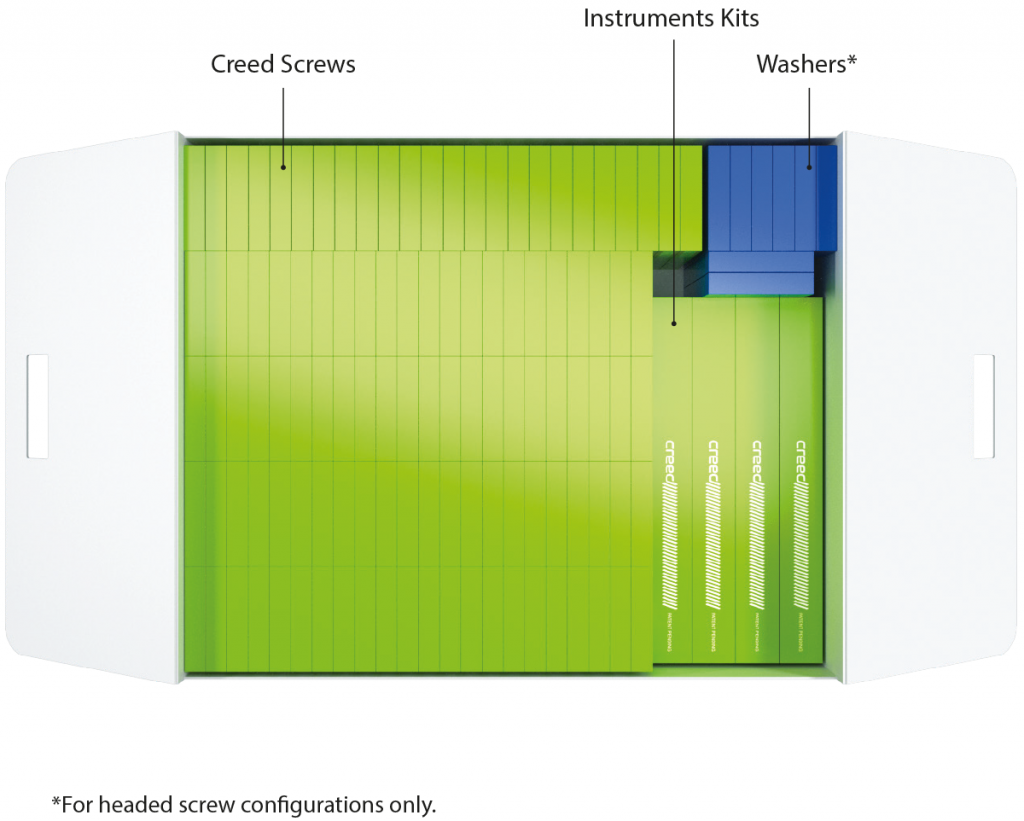

Trayless efficiency

The Creed Cannulated Screw System allows you to personalize a configuration of the screws that meet your
needs and preferences without the clutter of multiple or unnecessary reusable trays. Personalized offering of presterilized screw options, always Case Ready™ for surgery, when you are.

170

Screw
Variations

Headless
Screws

Headed
Screws

Various
Diameters

Thread
Lengths

Thread:8mm
Headed:12–30mm each 2mm
Headless:14–30mm each 2mm
K-wire:Ø1.3mm x 150mm
Torx Tip: T8

Thread:10mm
Headed: 18–50mm each 2mm 50–60mm each 5mm
Headless: 18–50mm each 2mm 50–60mm each 5mm
K-wire:Ø2.0mm x 150mm
Torx Tip: T15

Thread:16mm
Headed: 30–50mm each 2mm 50–75mm each 5mm
Headless: 30–50mm each 2mm 50–80mm each 5mm
K-wire:Ø2.8mm x 230mm
Torx Tip: T25

Thread:32mm
Headed: 42–50mm each 2mm 50–75mm each 5mm
Headless: 42–50mm each 2mm 50–75mm each 5mm
K-wire:Ø2.8mm x 230mm
Torx Tip: T25

Thread:19mm
Headed: 40–50mm each 2mm 50–95mm each 5mm
Headless: 40–50mm each 2mm 50–100mm each 5mm
K-wire:Ø3.2mm x 230mm
Torx Tip: T30

Thread:32mm
Headed: 40–50mm each 2mm 50–95mm each 5mm
Headless: 46–50mm each 2mm 50–105mm each 5mm
K-wire:Ø3.2mm x 230mm
Torx Tip: T30

Thread:8mm
Headed:12–30mm each 2mm
Headless:14–30mm each 2mm
K-wire:Ø1.3mm x 150mm
Torx Tip: T8

Thread:10mm
Headed: 18–50mm each 2mm 50–60mm each 5mm
Headless: 18–50mm each 2mm 50–60mm each 5mm
K-wire:Ø2.0mm x 150mm
Torx Tip: T15

Thread:16mm
Headed: 30–50mm each 2mm 50–75mm each 5mm
Headless: 30–50mm each 2mm 50–80mm each 5mm
K-wire:Ø2.8mm x 230mm
Torx Tip: T25

Thread:32mm
Headed: 42–50mm each 2mm 50–75mm each 5mm
Headless: 42–50mm each 2mm 50–75mm each 5mm
K-wire:Ø2.8mm x 230mm
Torx Tip: T25

Thread:19mm
Headed: 40–50mm each 2mm 50–95mm each 5mm
Headless: 40–50mm each 2mm 50–100mm each 5mm
K-wire:Ø3.2mm x 230mm
Torx Tip: T30

Thread:32mm
Headed: 40–50mm each 2mm 50–95mm each 5mm
Headless: 46–50mm each 2mm 50–105mm each 5mm
K-wire:Ø3.2mm x 230mm
Torx Tip: T30

Ready-to-use, everytime.

The instrumentation is provided in a sterile, Case Ready™ instrument kits designed specifically for Creed compression screws.

The Case Ready™ kits are designed to improve efficiency by reducing OR setup time and eliminating instrument cleanup. All instrument kits are made from either surgical steel or high-performance polymers with surgical steel inserts and their performance is equivalent to their re-usable counterparts. All parts are tested to insure high quality and predictable performance.
