Digital Fusion Implants

Cannulated HammerThread system is comprised of Creed Ø2.5mm implants and single-use disposable instruments, designed specifically for the correction of small bone deformities.

Effective
and reliable

Creed HammerThread is a Ø2.5mm cannulated, titanium implant, designed specifically for the correction of small bone deformities.

A small and effective portfolio of implants with appropriate design and length options for proximal and distal interphalangeal joint (PIPJ-DIPJ) arthrodesis.


Superior
precision

The Creed HammerThread implants were designed to provide surgeons with a minimally invasive and reliable solution to address small bone deformities.

The system is comprised of Ø2.5mm titanium Ti64 implants that accept Ø1.3 K-Wires. This combination results in superior precision during insertion and ample stability during the reduction of proximal and distal interphalangeal joints (PIPJ-DIPJ).

The double stinger tip design of the K-Wires also allows for retrograde insertion of the Creed HammerThread implants for both PIPJ and DIPJ fixation.

Reverse-Cutting Design
Expedites implant extraction
Forward-Cutting Design
Accelerates screwhead countersinking
Large Cannulation
Accepts Ø1.3mm K-Wires
Tapered Head Design of PIP Screws
Seamless fixation of PIPJ
Torx Interface
Promotes a sturdy driver / implant interface
Self-Drilling Tip Design
Aggressive Tri-tip design for unmatched cutting performance
Self-Tapping Tip Design
Aggressive Tri-tip design for unmatched cutting performance
Reverse-Cutting Feature
Facilitates removal of implant

Ready-to-use,
everytime.

The instrumentation is provided in a sterile, Case Ready™ instrument kit designed specifically for Creed HammerThread implants.

The instrument kit includes 4x double stinger tip Ø1.3mm K-Wires, a mini depth gauge, an AO-handle and a cannulated T8 driver with a tapered shaft that matches the implants outer diameter and allows the compression of the PIPJ only without requiring additional hole preparation.

Resources

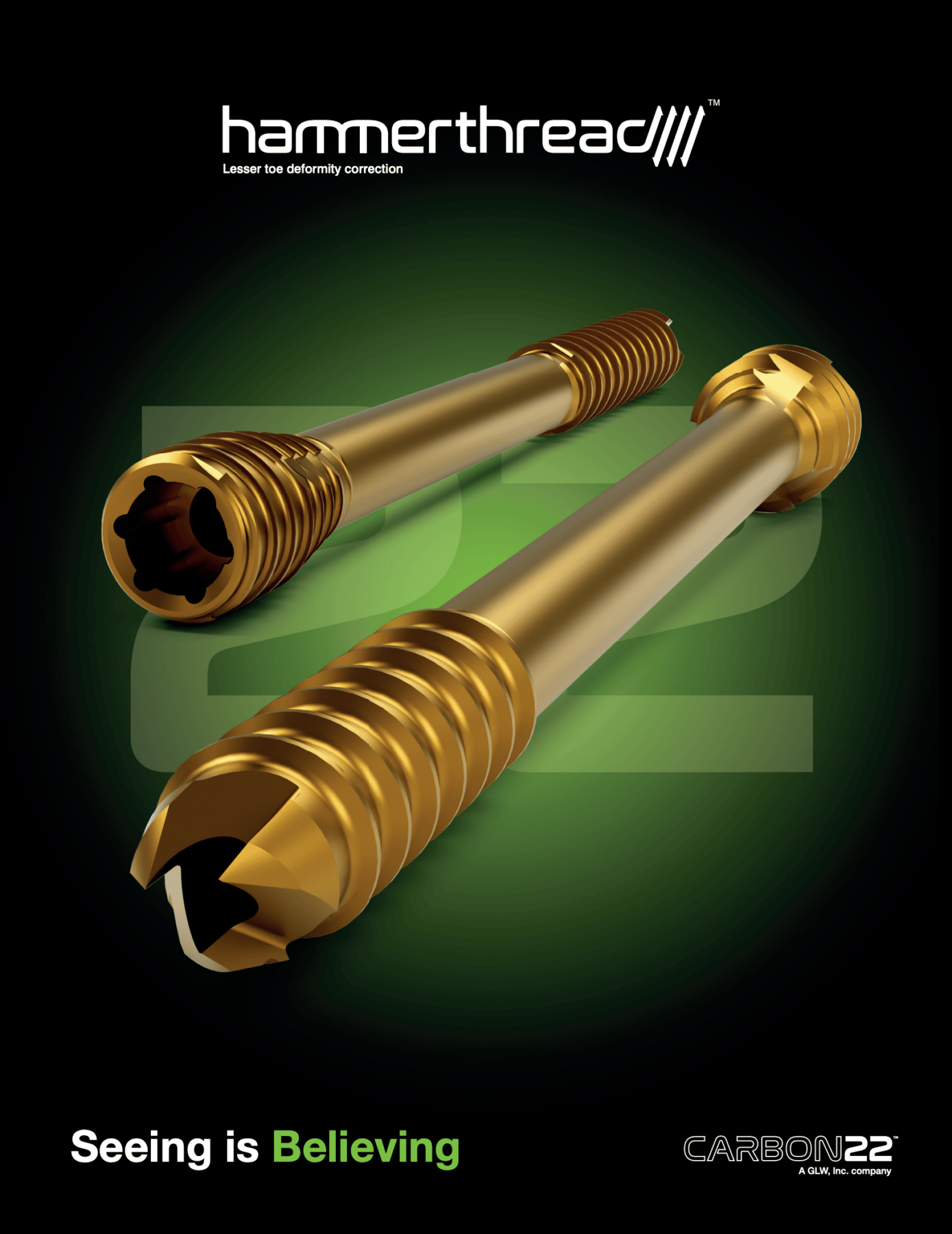

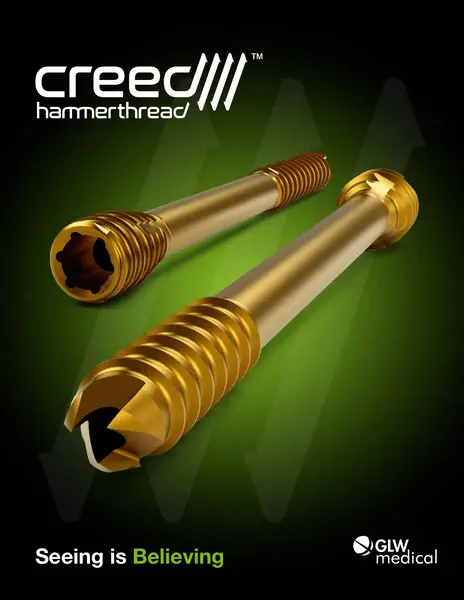

Creed HammerThread System Brochure
View document

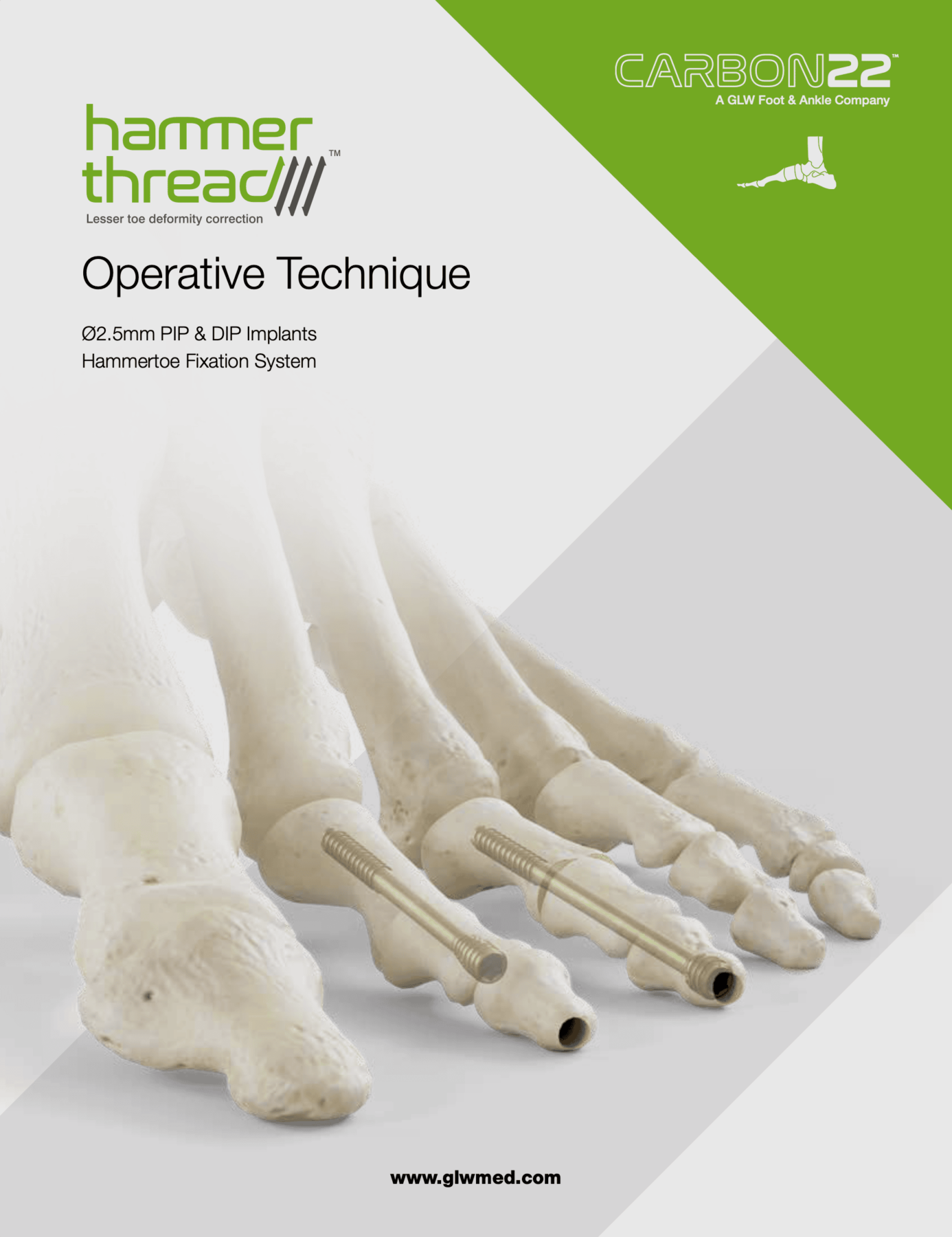

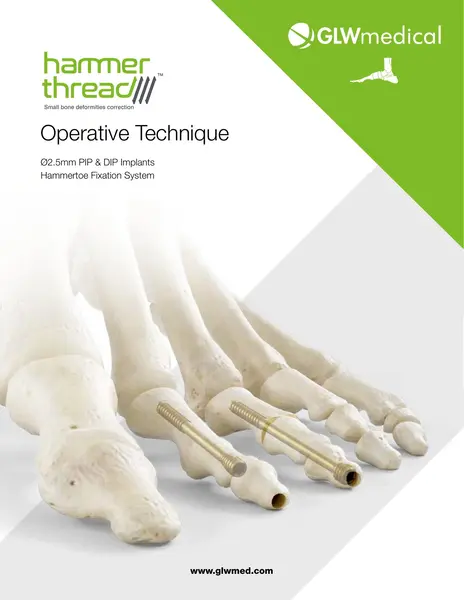

Creed HammerThread Operative Technique
View document
Creed IFU – Implants
View document
Creed IFU – Sterile Single Use Instruments
View document
Creed Screws 510K
View document
